Camlock Water Butt Connector, Type F + C, Back Nut and Washer, 1/2in to 2in

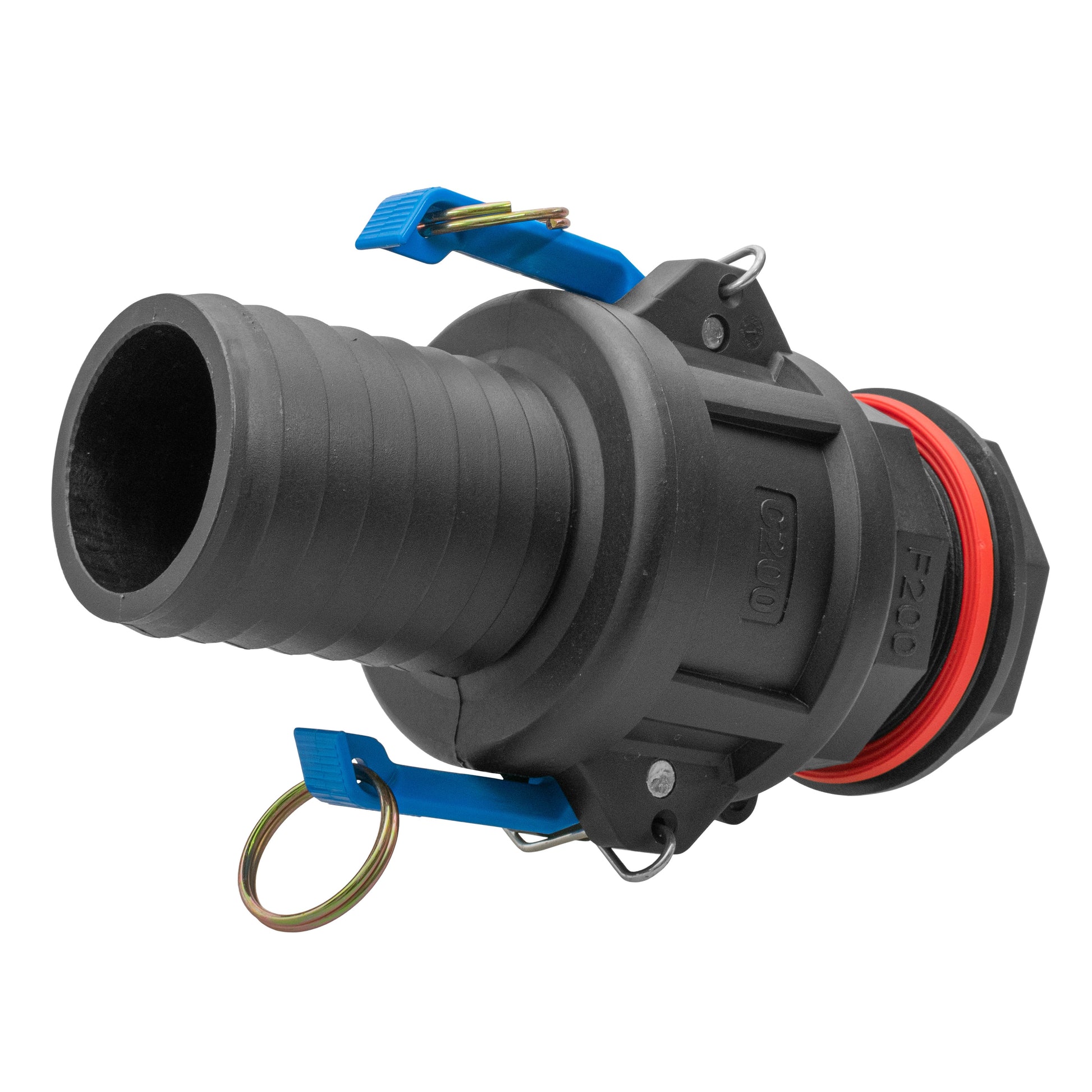

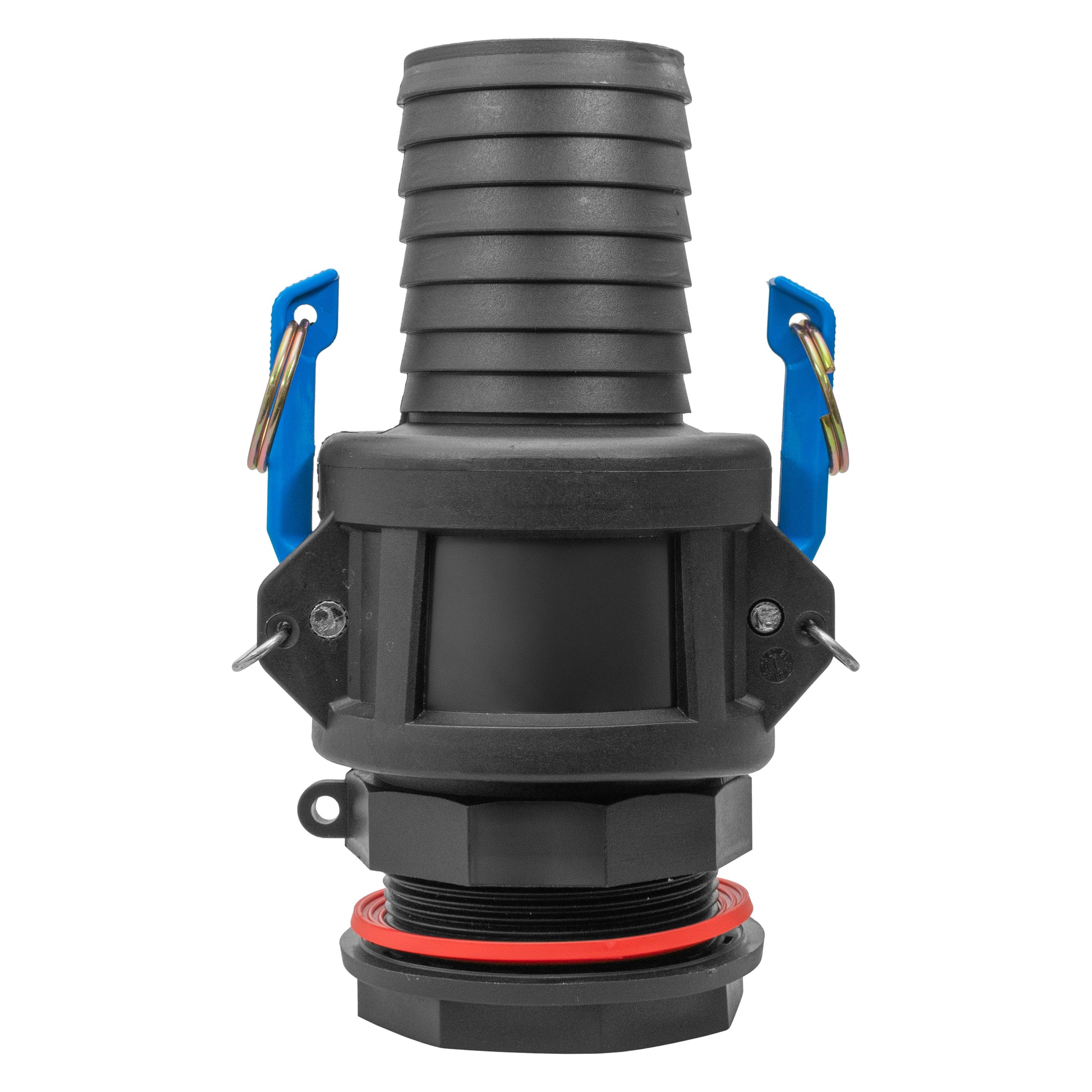

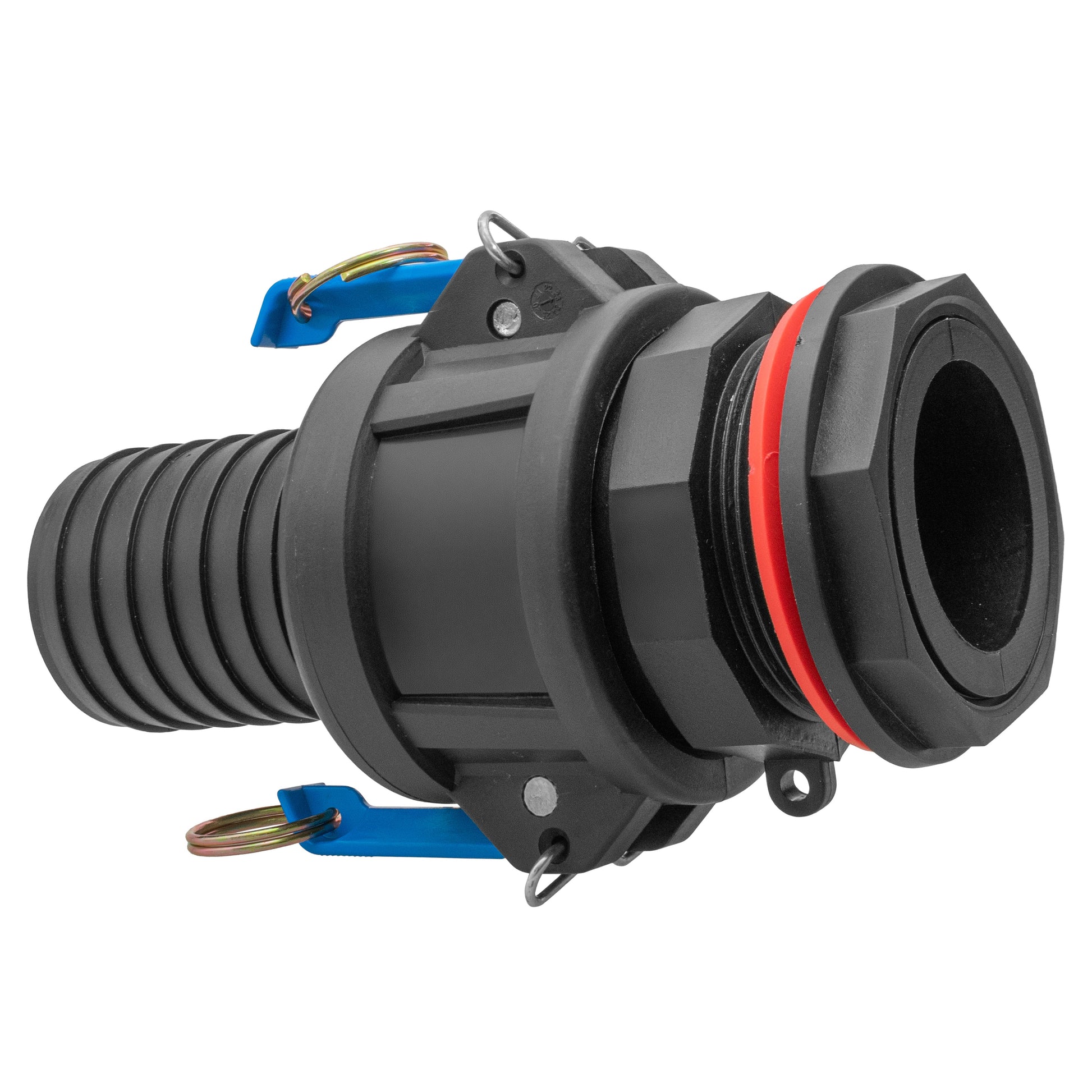

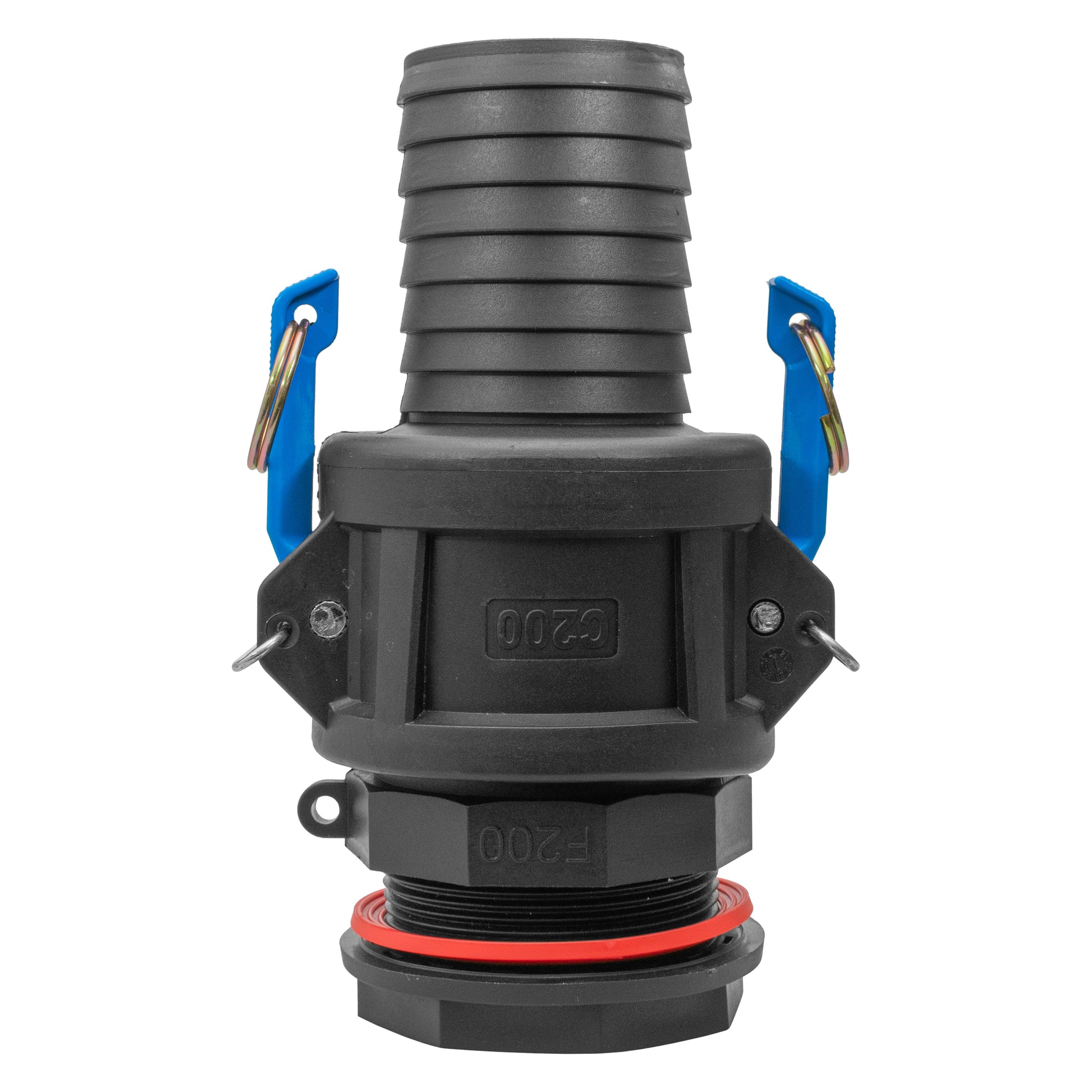

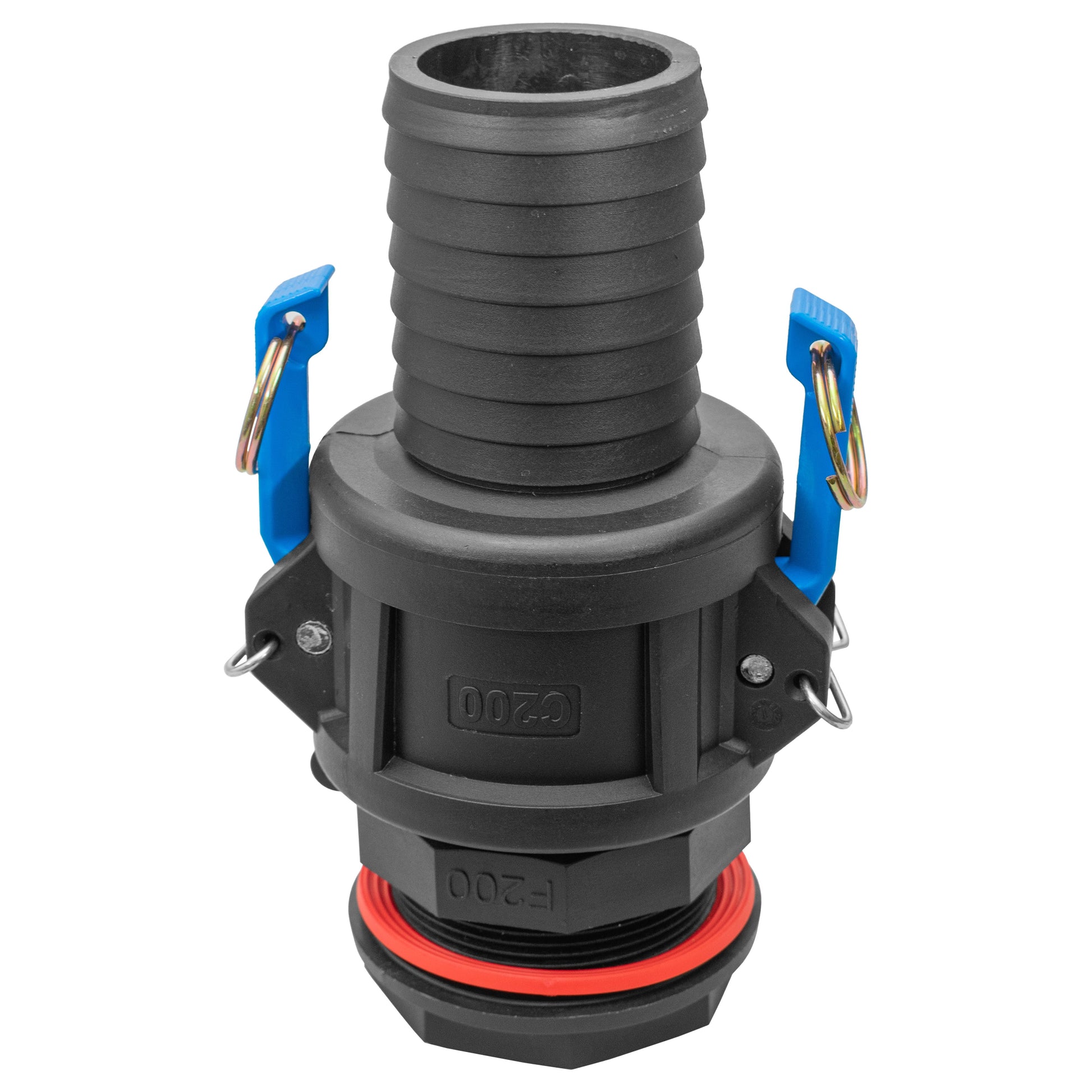

Camlock water butt connector with a straight hose tail, in polypropylene (PP), sizes 1/2in to 2in. Fit the Type F adaptor through the wall of a water butt or tank, then lock the Type C coupler on your hose onto it with two cam arms.

Fitting: drill a hole in the butt or tank wall to the size in the table, push the threaded end of the Type F through, fit the washer and tighten the back nut. Push the hose tail into your hose and secure it with a hose clip (not included).

Using it: lift the cam arms to take the hose off; fold them down to lock it back on.

Material: the camlock fittings are polypropylene (PP). Check PP suits your liquid before use.

Key features

• What you get: 1 x Type F male camlock adaptor with BSP male thread, 1 x back nut, 1 x washer and 1 x Type C female coupler with a straight hose tail, in the size you choose; camlock fittings in polypropylene (PP)
• Will it fit: Drill a hole in the water butt or tank wall to the size in the table for your thread. The hose tail takes the hose bore in the table. A wall that is not flat around the hole may not seal

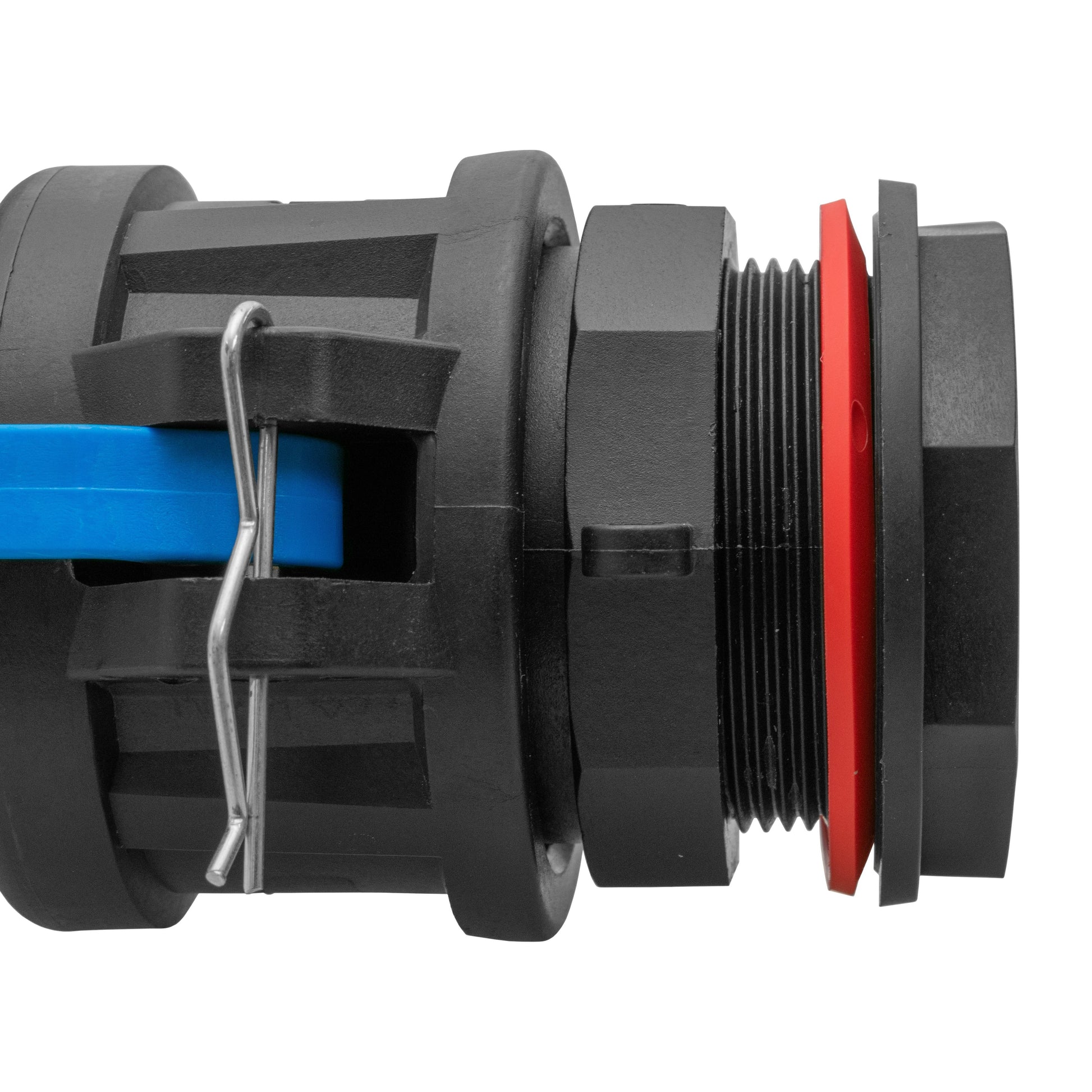

• How to fit: push the threaded end of the Type F through the hole, fit the washer and tighten the back nut so the washer seals against the wall. The camlock end stays on the outside
• Quick release hose: Fold the two cam arms down to lock the coupler on your hose onto the adaptor, and lift them to take it off, so the hose moves or stores without unscrewing
• What is it for: Water butts, rainwater tanks and linking or emptying containers. Check PP suits your liquid. Not included: hose, hose clips, hole saw or drill bit. Empty the butt below the hole before disconnecting

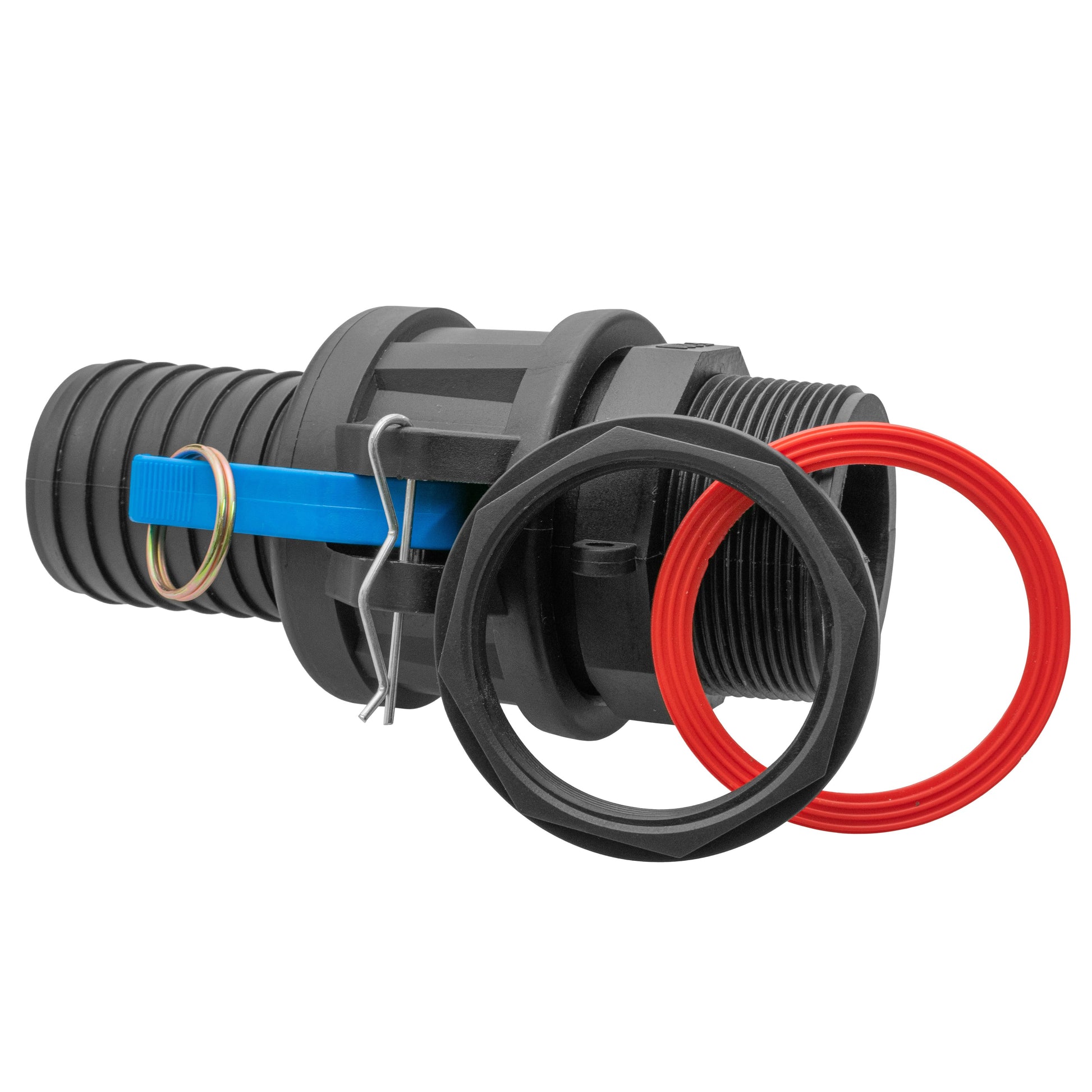

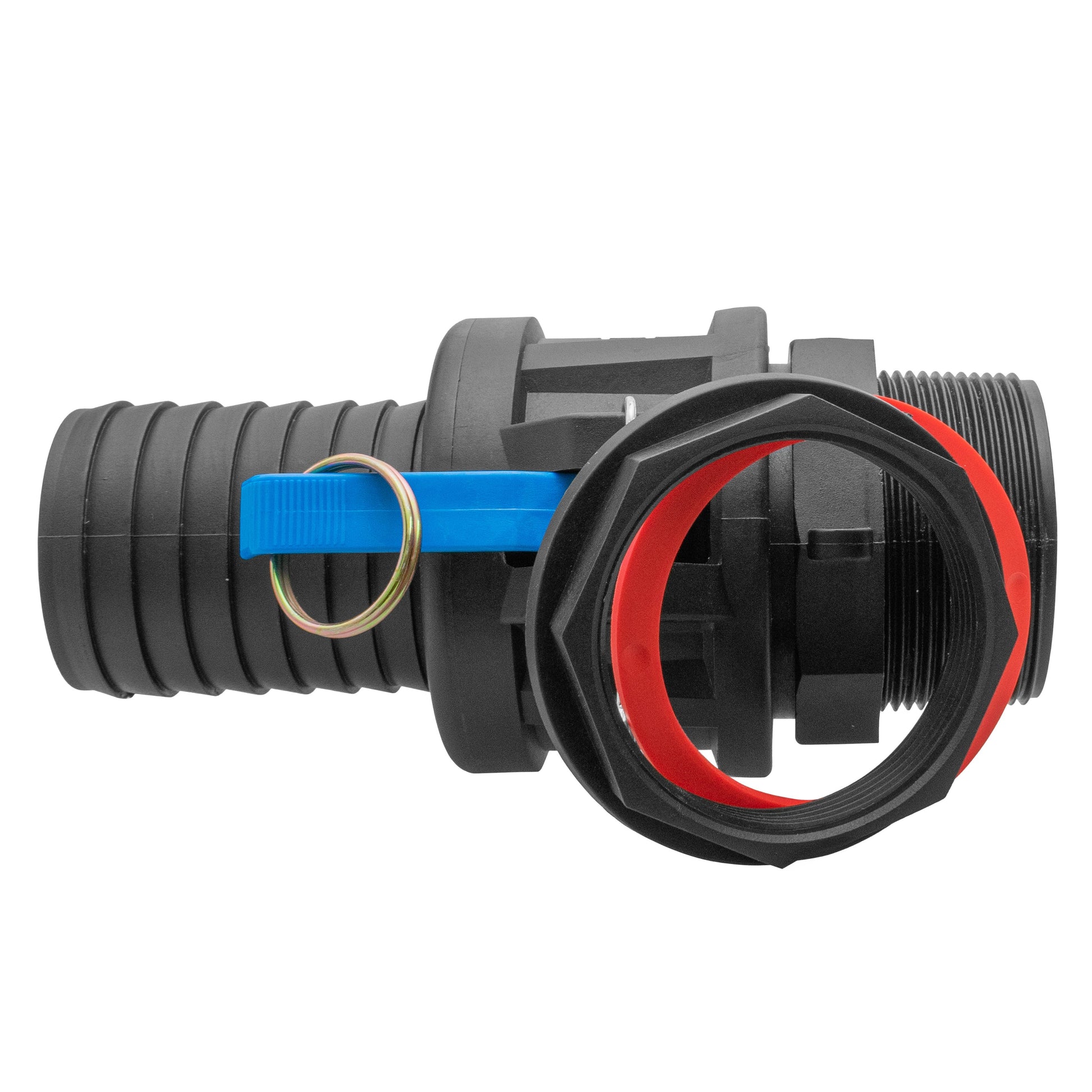

In the box

• 1 x Type F male camlock adaptor with BSP male thread
• 1 x back nut
• 1 x sealing washer
• 1 x Type C female coupler with a straight hose tail

Sizes
